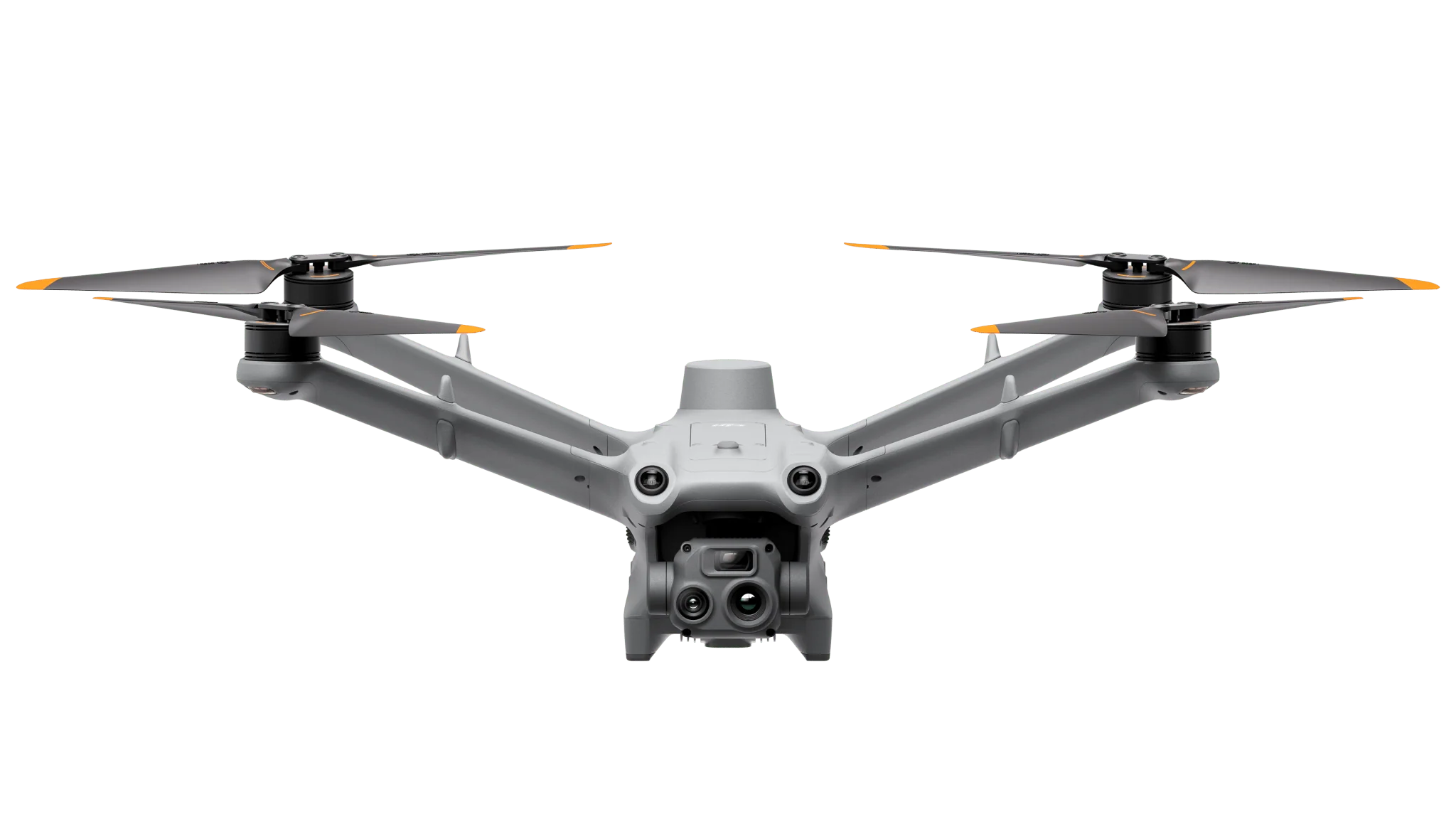

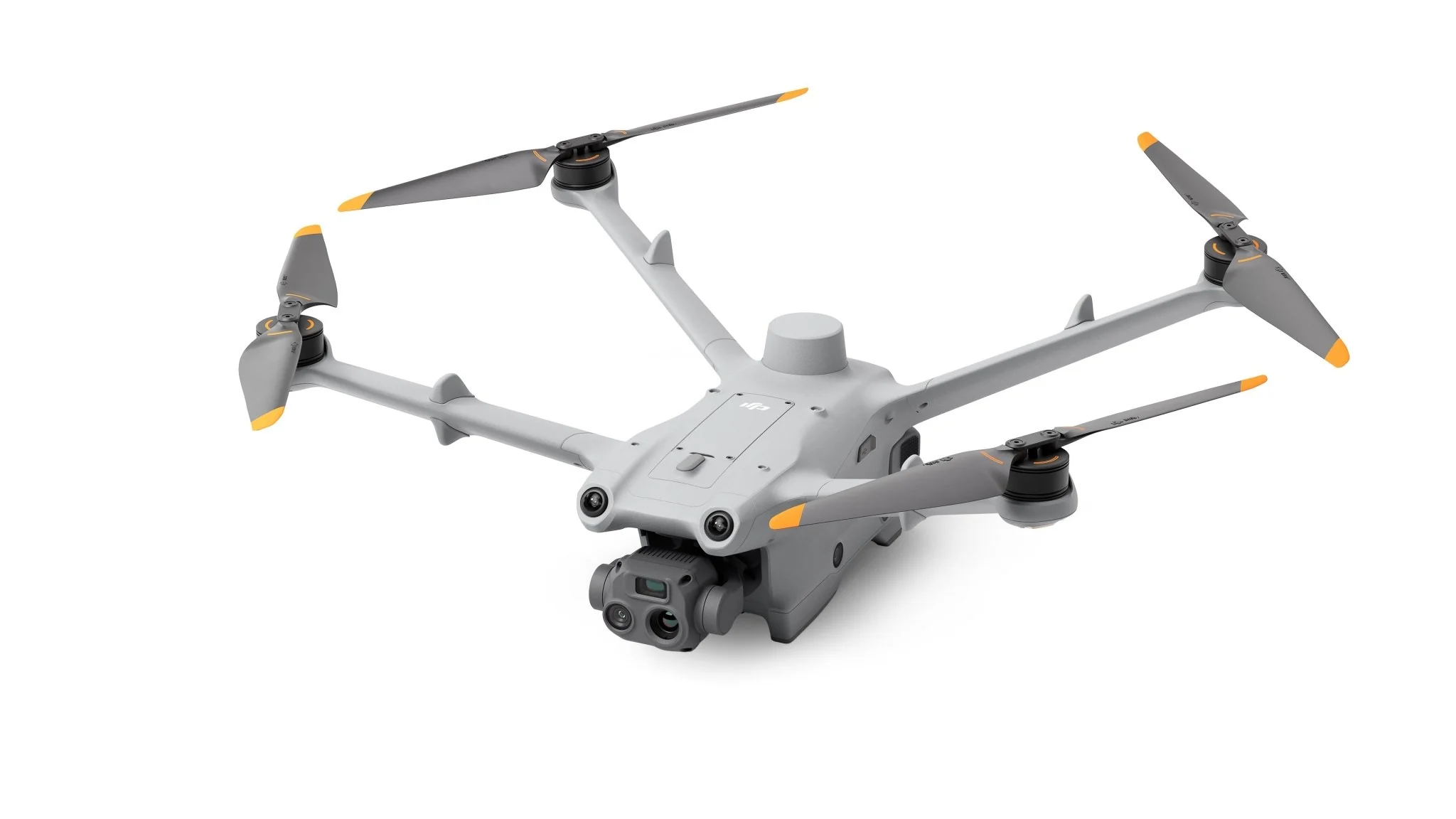

Matrice 3TD
The DJI Matrice 3TD is a high-performance drone engineered for integration with the DJI Dock 2. Equipped with a wide-angle camera, a telephoto camera, and a thermal camera, the M3TD captures both visible light and thermal images, making it ideal for security and inspection tasks.
Wide-Angle Camera:
- 1/1.32-inch CMOS
- 24mm Format Equivalent
- 48MP Effective Pixels
Telephoto Camera:
- 1/2-inch CMOS
- 162mm Format Equivalent
- 12MP Effective Pixels
Thermal Camera:
- 40mm Format Equivalent
- Normal Mode: 640×512@30fps
- UHR Infrared Image Mode: 1280×1024@30fps (with automatic activation based on ambient light)
- 28x Digital Zoom
Superior Performance: The DJI Matrice 3TD excels in high-standard operations with robust features.
- IP54 Rating: Dustproof and Waterproof
- Max Flight Time: 50 minutes
- Obstacle Sensing System: 6-Directional
- Max Operating Radius: 10 km
- Battery Cycles: 400
- Integrated RTK Module: ±3cm Positioning Accuracy
Efficient Operation: Quick Takeoff: DJI Dock 2, with dual RTK antennas, provides precise RTH location information immediately, enabling the aircraft to take off in as little as 45 seconds.
Quick Charging: DJI Dock 2 recharges the aircraft from 20% to 90% in just 32 minutes, ensuring continuous operations.
Dual-Camera Monitoring: Internal and external fisheye cameras on DJI Dock 2 offer real-time monitoring, allowing operators to remotely observe weather, environment, and the aircraft's takeoff and landing.
Cloud-Based Operation: Cloud Mapping: DJI FlightHub 2 creates high-precision 3D models from flight data, allowing for annotations, measurements, and downloads.
Flight Route Editor: Operators can edit flight routes visually using 3D models, enhancing planning and accuracy.
AI Spot-Check: The aircraft can compare and adjust camera angles to capture consistent areas across multiple flights.
FlyTo Tasks: Using 3D models, DJI FlightHub 2 can automatically plan optimal flight routes for urgent tasks with a single click.
Live Flight Controls: Operators can control the flight and gimbal angle remotely via keyboard and mouse, even from distant locations.
Obstacle Bypass: The aircraft's omnidirectional obstacle sensing and automatic bypass improve the success rate of flight tasks.
Open Ecosystem: Third-Party Payloads: The aircraft's E-Port allows the connection of additional payloads like loudspeakers and spotlights, which can be controlled via DJI FlightHub 2. The E-Port Lite supports parachutes for enhanced safety.
Edge Computing: DJI Dock 2 includes an edge computing interface for pre-processing media files, boosting operational efficiency.
Private Deployment With Cloud API: Customize a management system for DJI Dock 2 with Cloud API or integrate it with third-party cloud platforms for private deployment.
Cloud-to-Cloud Coordination: DJI FlightHub 2's FlightHub Sync function allows easy integration with third-party cloud platforms for flexible data management.
DJI TerraAPI: Integrate DJI Terra's mapping capabilities into dock management systems with DJI TerraAPI, enabling automated 2D/3D reconstruction and custom mapping workflows.
Note: This aircraft requires the DJI Dock 2 for operation and cannot function as a standalone unit.
