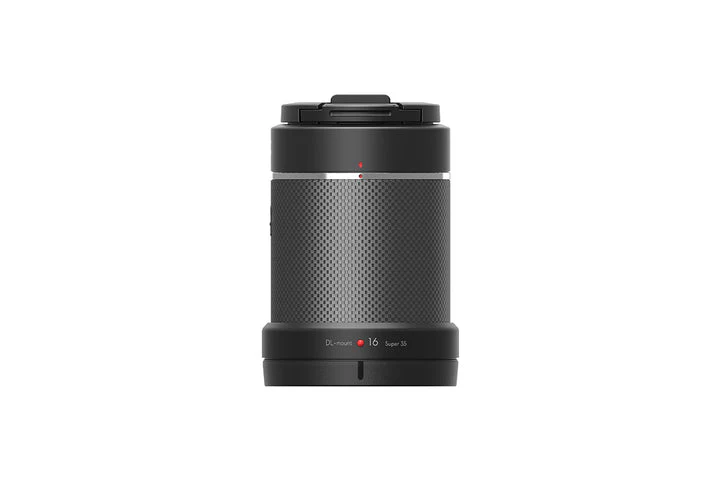

Zenmuse X7 DL-S Lens 16mm F2.8

Product image 1
1 / 3

Zenmuse X7 DL-S Lens 16mm F2.8



DL Lenses

The Zenmuse X7 uses a DL Mount which makes the X7 very compact without compromising on image quality. This, along with the carbon fibre lens make it lightweight at just 630 grams. Lenses for the X7 are available in focal lengths ranging from 16mm to 50mm. DJI DL Mount lenses are designed by world-leading optics teams, the four lenses have been embedded with advanced technologies crafted specifically for the X7’s high-end image sensor.
A graph showcasing data for the Zenmuse X7 DL Lenses



LENS SPECIFICATIONS

Lens

DL-S 16mm f2.8 ND ASPH

DL 24mm f2.8 LS ASPH

DL 35mm f2.8 LS ASPH

DL 50mm f2.8 LS ASPH

Approx. Weight (g)

182g

178g

180g

182g

Max Aperture

F2.8

F2.8

F2.8

F2.8

Max Image Circle

Super 35

35mm

35mm

35mm

Elements/Groups/ASPH Elements

13/12/4

9/8/3

9/8/3

9/7/2

Close Focus

0.40m

0.65m

0.85m

0.93

Front Diameter

46mm

46mm

46mm

46mm

Dimensions (mm)

55.0x62.0x70.6

55.0x62.0x71.2

55.0x62.0x71.2

55.0x62.0x71.2

Other

Built-in ND

Leaf Shutter

Leaf Shutter

Leaf Shutter



DL Lenses

The Zenmuse X7 uses a DL Mount which makes the X7 very compact without compromising on image quality. This, along with the carbon fibre lens make it lightweight at just 630 grams. Lenses for the X7 are available in focal lengths ranging from 16mm to 50mm. DJI DL Mount lenses are designed by world-leading optics teams, the four lenses have been embedded with advanced technologies crafted specifically for the X7’s high-end image sensor.
A graph showcasing data for the Zenmuse X7 DL Lenses



LENS SPECIFICATIONS

Lens

DL-S 16mm f2.8 ND ASPH

DL 24mm f2.8 LS ASPH

DL 35mm f2.8 LS ASPH

DL 50mm f2.8 LS ASPH

Approx. Weight (g)

182g

178g

180g

182g

Max Aperture

F2.8

F2.8

F2.8

F2.8

Max Image Circle

Super 35

35mm

35mm

35mm

Elements/Groups/ASPH Elements

13/12/4

9/8/3

9/8/3

9/7/2

Close Focus

0.40m

0.65m

0.85m

0.93

Front Diameter

46mm

46mm

46mm

46mm

Dimensions (mm)

55.0x62.0x70.6

55.0x62.0x71.2

55.0x62.0x71.2

55.0x62.0x71.2

Other

Built-in ND

Leaf Shutter

Leaf Shutter

Leaf Shutter
$442.75

Original: $1,265.00

-65%
Zenmuse X7 DL-S Lens 16mm F2.8—

$1,265.00

$442.75

Description



DL Lenses

The Zenmuse X7 uses a DL Mount which makes the X7 very compact without compromising on image quality. This, along with the carbon fibre lens make it lightweight at just 630 grams. Lenses for the X7 are available in focal lengths ranging from 16mm to 50mm. DJI DL Mount lenses are designed by world-leading optics teams, the four lenses have been embedded with advanced technologies crafted specifically for the X7’s high-end image sensor.
A graph showcasing data for the Zenmuse X7 DL Lenses



LENS SPECIFICATIONS

Lens

DL-S 16mm f2.8 ND ASPH

DL 24mm f2.8 LS ASPH

DL 35mm f2.8 LS ASPH

DL 50mm f2.8 LS ASPH

Approx. Weight (g)

182g

178g

180g

182g

Max Aperture

F2.8

F2.8

F2.8

F2.8

Max Image Circle

Super 35

35mm

35mm

35mm

Elements/Groups/ASPH Elements

13/12/4

9/8/3

9/8/3

9/7/2

Close Focus

0.40m

0.65m

0.85m

0.93

Front Diameter

46mm

46mm

46mm

46mm

Dimensions (mm)

55.0x62.0x70.6

55.0x62.0x71.2

55.0x62.0x71.2

55.0x62.0x71.2

Other

Built-in ND

Leaf Shutter

Leaf Shutter

Leaf Shutter
